PMS MAYO MAYO vessel had great and honorific history in diving operation , that encourage the Russian government to choose the vessel to help in recovering the Kursk nuclear submarine that sank in the in the Barents Sea.

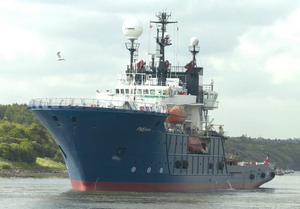

MAYO was built as the STENA MAYO , later renamed in DSND Mayo and is now working for Petroleum Marine sevices Company in Egypt as the PMS MAYO. The D.S.V. PMS Mayo is a single hull diving support vessel with a raised forecastle and an open aft deck,The deckhouse is located amidships and a helicopter deck is situated forward.
The vessel is classified as: Det Norske Veritas +1A1,

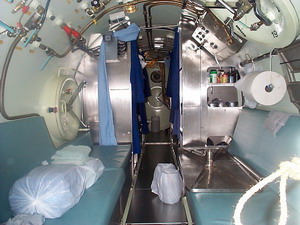

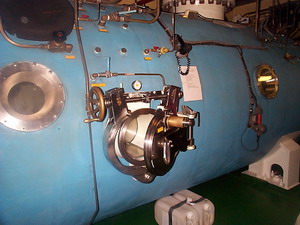

Eo, ICE.C, HELDK, DSV-III SF, DYNPOS, AUTR, Fire Fighter II. Diving Classification : Det Norske Veritas, Pressure Chambers 450 m Maximum Diving Depth 300 m ,with Capacity in Saturation available to 16 persons.
There is two Moonpools, 3.6m x 3.7m each, Guide rails inside the moonpools for controlled |
MAYO Project Main scope for PMS MAYO is pre and post lay
associated work free span , crossing rectification using either grout
bags, Mats or sleepers), riser clamp installation,
Tie -In spools design , fabrication and installation, pre-commissioning activities including cleaning gauging, testing and dewatering (purging), Above water tie-in, pipe line mechanical repair (using plidco clamps, smart or morgrip flanges),
Pulling through J-tubes, Smart pigging, Hot tabbing, Sub Sea Plem's pressurization, de-pressurization and replacement, under water inspection (UT thickness measurement, Marine gross cleaning, jetting, plasting), coat repair,cable relocation,….etc. PMS MAYO have ROV Unit model Lynx developed by Seaeye company.
LYNX is a 1500msw rated fully integrated inspection tool with a powerful performance envelope and a high payload for a vehicle of this size . The vehicle is powered by 6 off Seaeye brushless DC thruster units, which are proven worldwide. The system is designed to operate free swimming or in conjunction with a Seaeye Type 5 Tether Management System (TMS). F |
